Information details

直线振动筛

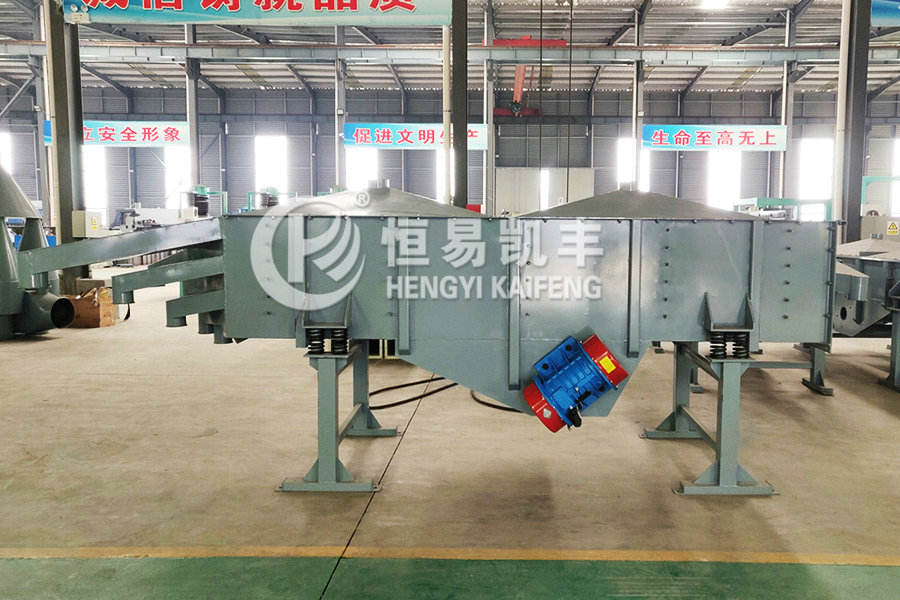

Linear vibrating screen

TQLZ linear vibrating screen is mainly used for screening and grading of granular activated carbon materials. It is widely used in plastics, chemical industry, medicine, building materials, grain, carbon, chemical fertilizer and other industries. The equipment has the characteristics of simple structure, stable operation, low noise and low energy consumption. When the vibrating screen is working, the two motors rotate in the opposite direction synchronously, causing the exciter to produce the reverse exciting force, forcing the screen body to drive the screen to move longitudinally, so that the material on the screen is thrown forward periodically by the exciting force, so as to complete the material screening operation.


参数
parameter
型号 Model
筛框长度(mm)
Screen frame length
配套动力(Kw)
Power
重量(Kg)
Weight
外形尺寸(mm)
Appearance size
TQLZ-802m0.75*28002800*1100*1400
3m1.1*29003800*1100*1400
TQLZ-1003m1.1*29003800*1300*1400
3.5m1.5*21004300*1300*1400
4m1.5*211004800*1300*1500
5m2.2*212005800*1300*1600
6m2.2*213006800*1300*1600
TQLZ-1203.5m2.2*214004300*1500*1400
4m2.2*215004800*1500*1400
